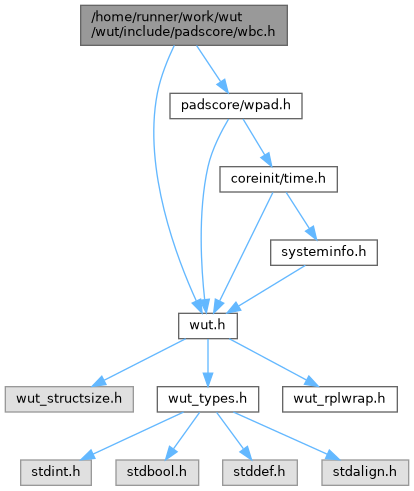

Include dependency graph for wbc.h:
Go to the source code of this file.
Typedefs | |
| typedef enum WBCError | WBCError |
Enumerations | |
| enum | WBCError { WBC_ERROR_NONE = 0 , WBC_ERROR_NO_CONTROLLER = -1 , WBC_ERROR_NOT_READY = -2 , WBC_ERROR_BAD_TEMPERATURE = -3 , WBC_ERROR_INVALID = -4 } |
Functions | |
| uint32_t | WBCGetABSWeight (void) |
| uint32_t | WBCGetBatteryLevel (uint8_t battery) |
| Converts raw battery value to a level. | |
| BOOL | WBCGetCalibrationStatus (void) |
| Checks if the Balance Board calibration is completed. | |
| double | WBCGetGCWeight (double weight) |
| Returns gravity-corrected weight. | |
| double | WBCGetGravCoff (void) |
| Returns the gravity coefficient. | |
| uint32_t | WBCGetProductArea (void) |
| Always returns 0. | |
| WBCError | WBCGetTCWeight (double weight, double *correctedWeight, const WPADStatusBalanceBoard *status) |
| Returns temperature-corrected weight. | |
| WBCError | WBCGetTGCWeight (double inputWeight, double *correctedWeight, const WPADStatusBalanceBoard *status) |
| Applies temperature and gravity correction to weight value. | |
| WBCError | WBCGetZEROPoint (double zeros[], uint32_t count) |
| Return the current zeros for each sensor. | |
| int32_t | WBCRead (WPADStatusBalanceBoard *status, double weights[], uint32_t count) |
| Converts the raw pressure data into weight values. | |
| WBCError | WBCSetZEROPoint (const double zeros[], uint32_t count) |
| Resets the zero weight value. | |
| BOOL | WBCSetupCalibration (void) |
| Starts the calibration of Balance Board. | |
